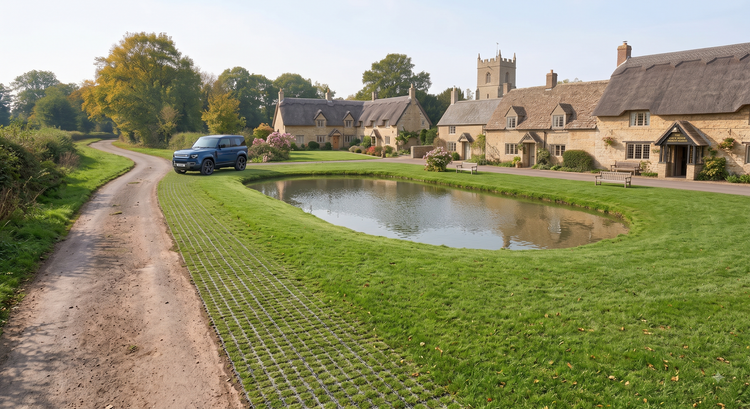

Refuerzo de Márgenes de Césped
Márgenes que aguantan ser pisados por vehículos
Los vehículos invaden los márgenes independientemente de la señalización. Las rejillas IBRAN refuerzan el suelo bajo el césped para que el margen soporte el paso de ruedas y siga teniendo aspecto de margen.
Por qué el refuerzo es imprescindible aquí
Un margen falla de forma diferente a cualquier otra superficie. Ningún vehículo circula a lo largo de él: los vehículos llegan sobre él, en ángulo, normalmente mientras giran, y generalmente solo con un lado del vehículo. La carga cae sobre terreno blando que nunca ha sido preparado, justo en el punto donde termina una superficie firme y empieza una sin acondicionar.
Esa sola rueda causa más daño que mil pasadas por el centro de una calzada. Corta el césped lateralmente, abre una rodera que se llena de agua, y el siguiente vehículo encuentra un suelo aún más blando. En una temporada, un borde de césped cuidado se convierte en una sucesión de surcos de barro, y la factura de restauración llega cada año.
Una rejilla celular elimina ese borde blando. La explanada confinada soporta la rueda y distribuye la carga hacia una subbase adecuada, de modo que el margen absorbe la invasión sin deformarse. El césped crece por encima de las celdas, por lo que el margen sigue teniendo aspecto de césped y no de calzada ensanchada.
Aplicaciones principales
- Carreteras rurales y vías de un solo carril
- Esquinas de intersecciones y puntos de estrangulamiento
- Apartaderos y zonas de espera
- Márgenes en urbanizaciones residenciales y zonas de maniobra
- Bordes en parques empresariales y polígonos industriales
- Zonas de invasión para vehículos de reparto y servicio
- Aparcamiento en márgenes de vía pública
- Franjas de acceso para mantenimiento de infraestructuras y servicios
Resumen técnico
| Subbase | 100-200mm de árido drenante de granulometría abierta, según los vehículos que invadan el margen |
| Material de relleno | Tierra vegetal de base arenosa para césped, o mezcla graduada 6-20mm donde se requiera una superficie firme |
| Cargas típicas | Turismos, furgonetas de reparto, camiones cortando esquinas, tráfico agrícola |
| Aspecto | Aspecto de margen de césped. Sin arcén visible ni ensanchamiento de calzada |
| Permeabilidad | Totalmente permeable al agua. Evita que la escorrentía se incorpore a la calzada |
| Remates | El remate perimetral es imprescindible donde la rejilla linda con la calzada |
| Vida útil de diseño | 25 años, con instalación documentada |
| Material | 100% polipropileno reciclado, fabricado en la UE con polímero reciclado |
¿Césped o grava?
Ambas opciones funcionan con la misma rejilla, y la elección depende generalmente del uso del margen.
El césped mantiene el carácter rural o residencial intacto. Nadie ve una superficie, ve un margen, y la vía o la urbanización no cambia de aspecto. Es adecuado para invasiones ocasionales: la esquina que un camión roza una vez a la semana, el carril donde los coches se apartan para cruzarse.
Un relleno de árido graduado proporciona una superficie más firme y predecible para márgenes que están en uso prácticamente constante: una zona de carga, una franja de aparcamiento en vía pública, una franja de mantenimiento. Tiene aspecto de superficie deliberada en lugar de césped, lo que a veces es exactamente lo que se busca, porque un borde visiblemente firme indica a los conductores que es seguro utilizarlo.
Combinar ambas soluciones a lo largo de un tramo funciona bien. Árido donde las ruedas realmente apoyan, césped a ambos lados, y el conjunto sigue teniendo un aspecto coherente.
¿Qué profundidad de rejilla elegir?
El número de una rejilla determina la profundidad de la capa confinada. En un margen, las cargas son vehiculares pero intermitentes, y el terreno subyacente suele ser de baja capacidad portante.
- IBRAN®-X50 donde camiones, tráfico agrícola o vehículos de reparto invaden el margen con regularidad, o cuando una especificación técnica condiciona el paquete de firme.
- IBRAN®-X40 para protección general de márgenes en calles residenciales y carreteras rurales: turismos, furgonetas y vehículos pesados ocasionales.
- IBRAN®-X30 cuando la profundidad de excavación está limitada por servicios enterrados, raíces de árboles o la necesidad de ajustarse al nivel de la calzada existente.
Los márgenes suelen tener servicios enterrados, así que comprueba qué hay debajo antes de comprometerte con una profundidad. Esa limitación condiciona la solución con más frecuencia que el tráfico.
Elección del material de relleno
Para césped, utiliza una tierra vegetal de base arenosa enrasada con la parte superior de las celdas, y una mezcla de semillas de uso intensivo en lugar de una ornamental fina. Los márgenes se siegan con desbrozadoras de tractor y los pisan quienes pasan, así que especifica pensando en la durabilidad.
Para árido, utiliza una mezcla graduada 6-20mm, gravilla angular y limpia. Una mezcla graduada compacta mejor que un tamaño único porque el árido fino rellena los huecos entre el grueso, y una celda completamente rellena transmite la carga a través de la piedra y no a través del plástico.
Sea cual sea el relleno elegido, colócalo enrasado y no por encima de las celdas. En un margen que linda con la calzada, el material suelto por encima de las celdas acabará en la carretera.
How it goes in
- Check for buried services before anything else. Verges carry water, gas, electricity, telecoms and drainage, often at shallow depth, and they are rarely where the drawings say. Scan and trial-hole first.
- Set out the width. Reinforce the full area that vehicles actually reach, not the neat rectangle you would like them to use. Existing wear patterns tell you exactly where that is.
- Excavate to the depth of your sub-base plus the grid depth. On a verge this is often the point where you discover why it failed: soft, waterlogged ground with no build-up beneath it at all.
- Lay a woven geotextile across the formation, lapping joins by at least 300mm, so the sub-base cannot punch down into soft subsoil.
- Lay and compact an open-graded sub-base in 50mm layers, to a depth that matches the vehicles overrunning.
- Blind and screed level, matching the finished level to the adjoining carriageway or footway.
- Push-fit the grids together, cutting to line along the carriageway edge and around any street furniture, gullies or covers.
- Restrain the edges, particularly where the grid meets the road. This is the transition that everything else depends on.
- Fill the cells level with the cell tops, brushing in so no cell is left hollow. Seed or turf grass sections and keep traffic off while they establish.
Full step-by-step detail is in our installation guides.
The transition at the carriageway edge
This is where verge installations succeed or fail, and it deserves designing rather than improvising.
A vehicle mounting a verge crosses from a firm surface to a reinforced one, and any step, lip or gap at that line concentrates the load exactly where the outermost grid has least support. Over time it lifts the edge, opens a gap, and lets water get underneath.
Finish flush with the carriageway, restrain the edge properly, and where there is a kerb, bring the grid up tight against it rather than leaving a strip of unreinforced ground between the two. That strip is where the rut will form.
Verges with trees
Mature street and roadside trees are a common reason verges cannot simply be paved.
A reinforced grass or gravel verge is often acceptable within a root protection area where a bound surface is not, because the excavation is shallower and the finished surface stays fully permeable, so rain still reaches the roots rather than running off into a gully.
Where roots are close to the surface, use the shallowest grid the traffic allows and discuss the build-up with the tree officer before you excavate. It is a considerably easier conversation than the one that follows root damage.
Keeping the verge doing its other jobs
Verges are not only there to be driven over. They carry services, take highway drainage, hold visibility splays open and, increasingly, are managed for biodiversity.
Reinforcement is compatible with all of it. The surface stays permeable, so it does not push water onto the carriageway. Grids can be lifted locally for service access and reinstated. And a grass fill keeps the verge as vegetation rather than converting it to hard standing, which matters where a highway authority or a planning condition is counting green space.
Get it right first time
The one thing worth knowing: reinforce where the wheels go, not where you wish they went.
The most common failure is reinforcing a tidy strip and watching vehicles cut the corner just beyond it. Verge damage is a geometry problem: drivers take the line their vehicle needs, and a lorry turning into a narrow entrance will always swing wide.
Read the existing damage before you set out. The bare, rutted ground is a precise record of where every vehicle has actually been, and it is better information than any drawing. Reinforce that area, plus a margin, and the problem stops. Reinforce a neater shape and you will simply move the rut a metre sideways.
Ask our engineer
Questions about depths, working around services or trees, or which system fits your verge? Ask below, or get in touch directly.
Design your surface
Set out the area, choose a grid and an infill, and see the finished surface. The schedule and the specification follow.
Permeable surface specification
Schedule
Assumptions
Specification
Common Questions
Why do grass verges get damaged so quickly?
A verge is loaded differently from any other surface. Vehicles arrive across it at an angle, usually while turning and usually with only one side of the vehicle, and that wheel lands on soft ground that was never built up.
It shears the turf sideways, opens a rut that fills with water, and the next vehicle finds softer ground still. One overrunning wheel does more damage than a thousand passes down the middle of a road.
Should a reinforced verge be grass or gravel?
Both work in the same grid. Grass keeps the rural or residential character intact and suits occasional overrun, such as a corner clipped once a week. A graded stone fill gives a firmer, more predictable surface for verges in constant use, such as a delivery bay or roadside parking, and the visibly firm edge tells drivers it is safe to use.
Mixing the two along a length works well: stone where the wheels land, grass either side.
How wide should a reinforced verge be?
Reinforce the full area vehicles actually reach, not the neat rectangle you would like them to use.
Existing wear patterns are a precise record of where every vehicle has been and are better information than any drawing. Reinforce that area plus a margin, or you will simply move the rut a metre sideways.
What about buried services under the verge?
Check before you set out. Verges carry water, gas, electricity, telecoms and drainage, often at shallow depth and rarely where the drawings say, so scan and trial-hole first.
Service depth constrains the grid depth more often than the traffic does. Grids can be lifted locally for future service access and reinstated afterwards.
Can you reinforce a verge with trees in it?
Often yes, and it is frequently acceptable within a root protection area where a bound surface is not. The excavation is shallower and the finished surface stays fully permeable, so rain still reaches the roots rather than running off into a gully.
Where roots are close to the surface, use the shallowest grid the traffic allows and discuss the build-up with the tree officer before excavating.
Which grid depth is right for verge protection?
The 40mm grid suits general verge protection on residential streets and rural lanes carrying cars, vans and occasional larger vehicles. Step up to 50mm where HGVs, agricultural traffic or delivery vehicles overrun regularly.
Use 30mm where excavation depth is limited by services, tree roots or the need to match the carriageway level closely.
How do you finish the edge where the verge meets the road?
Finish flush with the carriageway and restrain the edge properly. Any step, lip or gap at that line concentrates load exactly where the outermost grid has least support, which lifts the edge and lets water underneath.
Where there is a kerb, bring the grid tight against it rather than leaving a strip of unreinforced ground between the two, because that strip is where the rut will form.
Will a reinforced verge still count as green space?
A grass-filled grid keeps the verge as vegetation rather than converting it to hard standing, which matters where a highway authority or planning condition is counting green space.
The surface also stays fully permeable, so it does not push additional run-off onto the carriageway.
Can vehicles park on a reinforced verge?
Yes, where parking is permitted. Reinforced verge parking is a common application on residential streets and business parks, and it stops the surface breaking up under repeated use.
Where parking is constant rather than occasional, a graded stone fill usually performs and looks better than grass, because grass under a parked car gets no light.
What maintenance does a reinforced verge need?
Grass sections are mown and maintained as any amenity grass, and mowers pass straight over because the cell tops sit below the growing crown. Stone sections need levels checking after the first winter and any settled cells brushing back up.
There is no annual reinstatement, which is the normal maintenance cycle for an unreinforced verge.
