Senderos y caminos peatonales con grava estabilizada
Grava firme y accesible bajo los pies

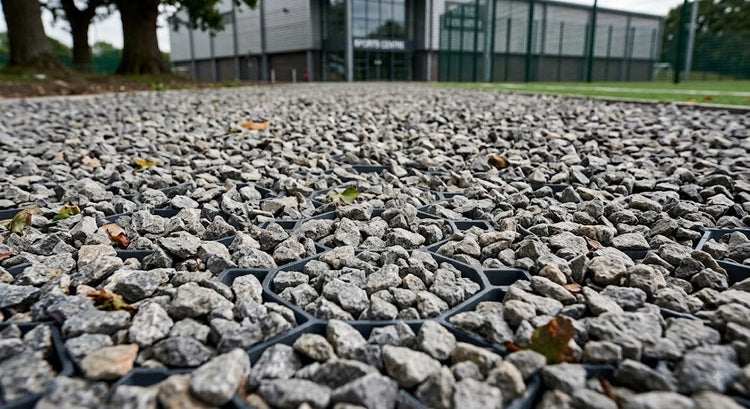

Un sendero de grava que todo el mundo puede usar. Las rejillas IBRAN mantienen el árido firme y nivelado: la superficie no se desplaza, admite sillas de ruedas y carritos, y la grava no migra al jardín.
Por qué es imprescindible la estabilización de suelo
La grava suelta es una mala superficie para caminar y prácticamente impracticable para rodar. Se mueve bajo los pies, de modo que cada paso exige más esfuerzo del necesario. Se desplaza hacia el césped, los arriates y el interior de la vivienda. Y resulta inaccesible para cualquier elemento de rueda pequeña: carritos de bebé, sillas de ruedas, andadores, scooters de movilidad, carretillas.
Confinar el árido cambia por completo las prestaciones de la superficie. Retenida en celdas cerradas y compactada, la grava se vuelve firme y nivelada, con un comportamiento próximo al de un pavimento ligado, pero manteniendo una permeabilidad total y el aspecto natural de la grava.
Esa es la propuesta para un sendero: la estética y el drenaje de la grava, sin ninguno de los inconvenientes que llevan a descartarla.
Aplicaciones habituales
- Senderos y caminos peatonales en jardín
- Accesos principales y aproximaciones a entradas
- Cementerios, jardines conmemorativos y recintos religiosos
- Parques, espacios de visita y jardines públicos
- Entornos de interés patrimonial y zonas protegidas
- Rutas peatonales en colegios y campus universitarios
- Senderos junto a árboles de porte
- Accesos a trasteros, cobertizos y pasos laterales
Resumen técnico
| Subbase | 50-75mm de zahorra compactada para tráfico peatonal. Mayor espesor si puede circular algún vehículo |
| Relleno | Mezcla granulométrica 6-14mm, gravilla limpia y angular, enrasada más 5mm de capa de sellado superficial |
| Carga típica | Tráfico peatonal, sillas de ruedas, carritos de bebé, scooters de movilidad, maquinaria de jardinería |
| Accesibilidad | Un relleno granulométrico densamente compactado proporciona una superficie firme y nivelada apta para acceso con ruedas |
| Permeabilidad | Totalmente permeable al agua. El agua llega a las raíces de los árboles y a las zonas de plantación en lugar de escorrer |
| Excavación | Mínima. Apta cerca de raíces, umbrales y cotas existentes |
| Vida útil de diseño | 25 años, con instalación documentada |
| Material | 100% polipropileno reciclado, fabricado en la UE con polímero reciclado |
Cómo conseguir un sendero realmente accesible
Aquí es donde un camino peatonal de grava estabilizada demuestra su valor, y donde la mayoría de las recomendaciones habituales sobre grava se equivocan por completo.
El consejo más extendido es usar árido de mayor tamaño para el acceso con ruedas. Es incorrecto. Un árido uniforme de granulometría gruesa deja huecos mayores entre partículas, y una rueda giratoria, el pie de un andador o una rueda estrecha caen directamente en ellos. El resultado es una superficie que engancha, desestabiliza y cansa.
Lo que hace practicable una superficie es la densidad, no el tamaño de partícula. Una mezcla granulométrica de gravilla angular fina, confinada en una rejilla y compactada, ofrece una superficie continua y firme sin huecos en los que hundirse. Eso es un sendero que un usuario de silla de ruedas puede recorrer de forma autónoma, y es perfectamente alcanzable con grava sin recurrir al asfalto ni a la resina.
En espacios públicos y entornos patrimoniales esto tiene doble importancia: cumple con los requisitos de accesibilidad y mantiene el aspecto de grava suelta que los organismos de protección del patrimonio y los técnicos municipales suelen exigir.
¿Qué profundidad de rejilla elegir?
La cifra de una rejilla indica la profundidad de la capa de árido confinado. Los senderos soportan cargas muy inferiores a cualquier uso vehicular, por lo que la elección de profundidad aquí depende casi siempre de las cotas disponibles y de la excavación posible, no de la resistencia.
- IBRAN®-X30 es la opción correcta para la mayoría de senderos. El paquete de firme más delgado, la menor excavación y el menor volumen de árido: factores decisivos cuando se trabaja cerca de raíces, junto a un umbral o ajustando cotas existentes.
- IBRAN®-X40 cuando el sendero deba admitir acceso vehicular ocasional o funcione también como entrada de vehículos.
- IBRAN®-X50 cuando la especificación requiera una capa confinada más profunda o el trazado cruce zonas con paso de vehículos de servicio.
Para un sendero, especificar más profundidad de la necesaria es árido que pagas para enterrar. Esta es una aplicación donde la solución más superficial suele ser la correcta.
Elección del árido
Utiliza una mezcla granulométrica de 6-14mm, gravilla angular y limpia. Una celda de menor profundidad requiere un tamaño máximo de partícula más fino para rellenarse completamente, y una mezcla granulométrica compacta mejor que cualquier árido uniforme, porque las partículas más finas colmatan los huecos entre las más gruesas.
En un sendero, el resultado es también mayor confort. Una superficie densamente compactada no se mueve bajo los pies, no engancha las ruedas y no se adhiere a las suelas para entrar en el interior.
La gravilla angular supera a la redondeada, que rueda bajo los pies con independencia de la granulometría. Evita los finos y los áridos de machaqueo sin cribar: ligan la superficie, impiden el drenaje y ofrecen sustrato para el arraigo de malas hierbas.
Los áridos decorativos funcionan bien en esta aplicación siempre que sean angulares, lavados y suministrados con granulometría continua en lugar de uniforme, lo que permite combinar con la piedra local o con el esquema de plantación sin sacrificar prestaciones.
Recommended for this application

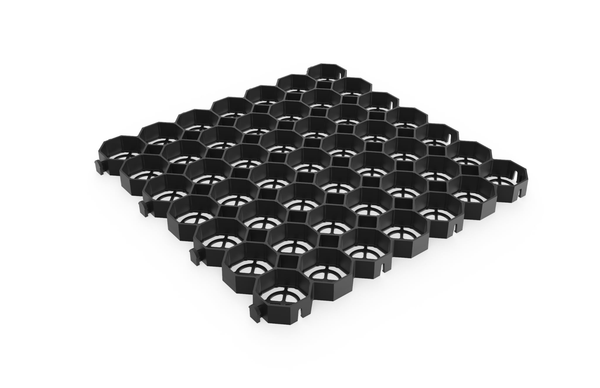

Rejillas de Grava para Aparcamientos de Alto Rendimiento
View productHow it goes in
- Set out the area and work out where water currently goes. A gateway is usually the low point of both the field and the road, so it collects from both. Decide now whether you need a cross-fall, a French drain across the entrance, or simply somewhere for it to soak away.
- Dig out the mud. This is the step people skip and it is the one that matters most: soft, poached ground has no bearing capacity, and building on it just buries the problem deeper. Excavate to firm subsoil, however far down that is.
- Lay a woven geotextile across the formation, lapping joins by at least 300mm. On soft agricultural ground this is structural: it stops the sub-base punching down into wet subsoil and stops soil pumping up into your stone.
- Lay and compact the sub-base in 50mm layers. On very soft or peaty ground you may need more depth than a road would take, because you are building a raft rather than a surface.
- Blind with a thin layer of grit sand and screed it level.
- Push-fit the grids together, working from one edge and staggering the joints. Cut to line at the gateposts and verges with a saw.
- Restrain the edges. On a gateway, run the grids wider than the gap itself so the edge restraint sits outside the line the tyres actually take.
- Fill the cells with a 6-20mm graded blend, level plus a 5-10mm blinding, brushing it in so no cell is left hollow.
Full step-by-step detail is in our gravel grid installation guide.
How far into the field?
Further than you think. The instinct is to surface the gap between the posts and stop, but the damage does not stop there.
Vehicles turn as they enter and exit, so the worn area fans out into the field well past the gateway itself. Surface only the gap and you move the mud hole two metres, then have to drive through it to reach the good bit.
As a working rule, extend at least a tractor and trailer length into the field, and wider than the gate opening on both sides. On a busy entrance, take it as far as the turning circle of your largest vehicle. It is the difference between an entrance that works and one that only looks like it does.
Mud on the road
Depositing mud on the public highway is your responsibility, and a wet gateway is where most of it comes from. Tyres pick it up in the entrance and drop it on the road for the next hundred metres.
A firm, free-draining entrance largely removes the source. There is no standing mud for tyres to load up with, so far less leaves the field in the first place. It will not eliminate cleaning duties during a wet harvest, but it changes the scale of the problem, and it takes away the entrance as the cause.
Livestock gateways
Cattle do to a gateway what tractors do, only more often and with higher pressure per hoof. A herd moving twice a day through the same gap will poach it into a slurry whatever the weather does.
A grid surface gives firm footing that drains, which reduces lameness risk and stops the gateway becoming the place stock refuse to walk. Fill level and brush it in well: a smooth, evenly packed surface is what you want underfoot, not proud stone.
Get it right first time
The one thing worth knowing: dig the mud out first.
Every failed gateway on every farm has the same history. Someone tipped stone into a wet hole because it was quicker than excavating, the stone sank into the soft ground over one winter, and by the next year the hole was back and deeper.
Stone laid on mud becomes mud. Excavate to firm ground, get the membrane in, build the sub-base in layers, and the surface above it will still be there in twenty years. Skip it and you will be doing the same job again next autumn, in worse weather, with the harvest waiting.
Ask our engineer
Questions about depths, sub-base, how far to extend an entrance, or which system fits your ground? Ask below, or get in touch directly.
Design your surface
Set out the area, choose a grid and an infill, and see the finished surface. The schedule and the specification follow.
Permeable surface specification
Schedule
Assumptions
Specification
Common Questions
Why does my field entrance keep turning to mud?
Three things happen in a gateway that happen nowhere else. Every movement in and out of the field funnels through the same few metres, vehicles turn under load so the tyre grinds rather than rolls, and there is a transition from a firm surface to a soft one exactly where the load is highest.
Loose stone tipped in gets worked sideways and pressed down into the soft ground beneath, so it disappears within a season. Confining the stone in a cellular grid stops that happening.
Do I need to dig out the mud before laying grids?
Yes, and it is the step that matters most. Soft, poached ground has no bearing capacity, so building on it just buries the problem deeper.
Excavate to firm subsoil however far down that is, lay a woven geotextile, then build the sub-base in compacted layers. Stone laid on mud becomes mud.
How far into the field should I surface a gateway?
Further than the gap itself. Vehicles turn as they enter and exit, so the worn area fans out well past the gateway.
As a working rule, extend at least a tractor and trailer length into the field and wider than the gate opening on both sides. Surface only the gap and you move the mud hole two metres, then have to drive through it to reach the good bit.
Will grids take a loaded trailer, tanker or combine?
Yes, when the sub-base and grid depth are specified for it. The 50mm grid is our recommendation for gateways and tracks carrying loaded trailers and tankers, and anywhere plant turns under load.
Build for the heaviest vehicle that uses the entrance, not the everyday one, because it is the harvest and silage movements that do the damage.
Are grids suitable for livestock gateways?
Yes. Cattle poach a gateway faster than machinery does, because a herd moves through the same gap twice a day at high pressure per hoof.
A grid surface gives firm footing that drains, which reduces lameness risk and stops the gateway becoming the place stock refuse to walk. Fill level and brush it in well so the surface is smooth underfoot rather than proud.
Will this stop mud getting onto the road?
It removes most of the source. Tyres pick mud up in a wet entrance and drop it on the highway for the next hundred metres. A firm, free-draining gateway means there is no standing mud to load up with, so far less leaves the field.
It will not eliminate cleaning duties during a wet harvest, but it changes the scale of the problem.
What sub-base do farm tracks and gateways need?
150mm to 250mm of compacted MOT, and more on soft or peaty ground where you are effectively building a raft rather than a surface. Lay and compact it in 50mm layers.
Ground conditions vary enormously across a farm, so the depth that works at the yard may not be right at the far end of the holding.
What size stone should I fill farm grids with?
A graded blend between 6mm and 20mm, angular and washed. A blend packs tighter than a single size because the smaller stone fills the gaps between the larger.
Avoid fines and scalpings: they bind the surface and stop it draining, which on a gateway defeats the point entirely, because a surface that holds water will be a mud hole again.
Can grids be lifted and reused elsewhere?
Individual grids can be lifted and reinstated, which is useful for temporary or seasonal access, or where a gateway may move.
Bear in mind the sub-base and excavation stay behind, so the reusable element is the grid itself rather than the whole build-up.
How much maintenance does a reinforced gateway need?
Very little. Check levels after the first winter and brush any settled cells back up.
Because the stone is confined there is no annual load of hardcore and no regrading, which is the normal maintenance cycle for an unreinforced entrance. The grid carries a 25 year warranty subject to documented installation.
